Plastic Linear Bearing Plastic Self Lubricating Bearing linear slide bearing

Name: Plastic Linear Bearing Plastic Self Lubricating Bearing linear slide bearing
Brand: Joyreap
Price: 1 USD

Quality Plastic Linear Bearing Plastic Self Lubricating Bearing linear slide bearing for sale

Brand Name : Joyreap

Model Number : JR102M

Certification : ISO 9001; IATF16949

Place of Origin : China

Code : JR102M

Material : Plastic

Type : Openning and closed

Feature : Self lubircating, long service life

Contact Now

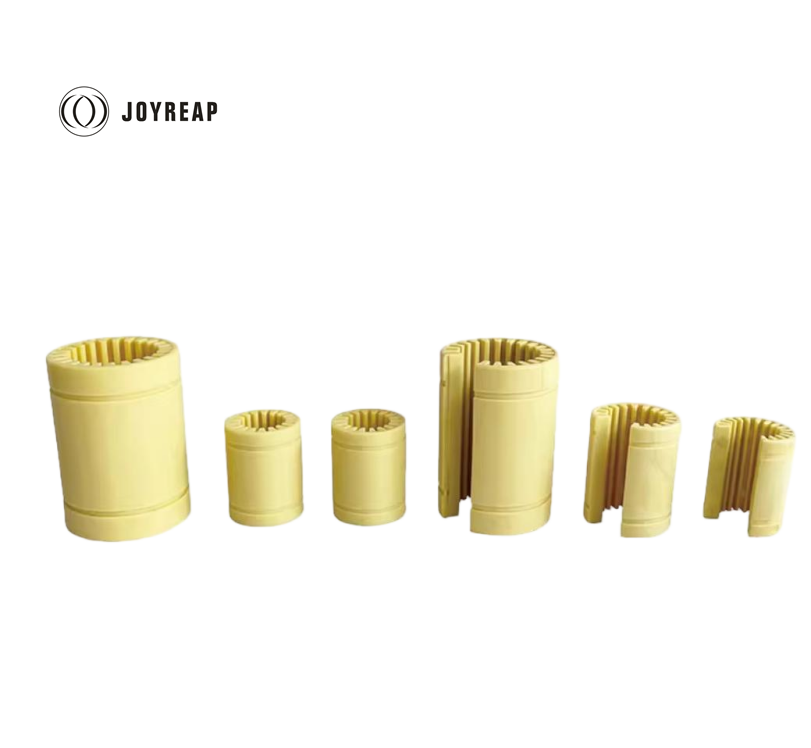

JR102M Plastic Linear Bearing Plastic Self Lubricating Bearing linear slide bearing

JR102M plastic linear bearing is made of high-performance polymers.It's designed for effortless assembly with a transition fit. This innovative bearing features reduced clearance for enhanced performance and is secured by reliable circlips. Crafted from high-quality plastic material, it ensures durability and longevity. Experience smooth and efficient motion with this exceptional linear slide bearing, perfect for a variety of applications.

Material:

Plastic

Type:

Openning design and closed design

Feature:

● Assembly by press fitting
● Axial secured by circlips
● Resistant to dirt and dust
● Operation temperature -20℃/+60℃

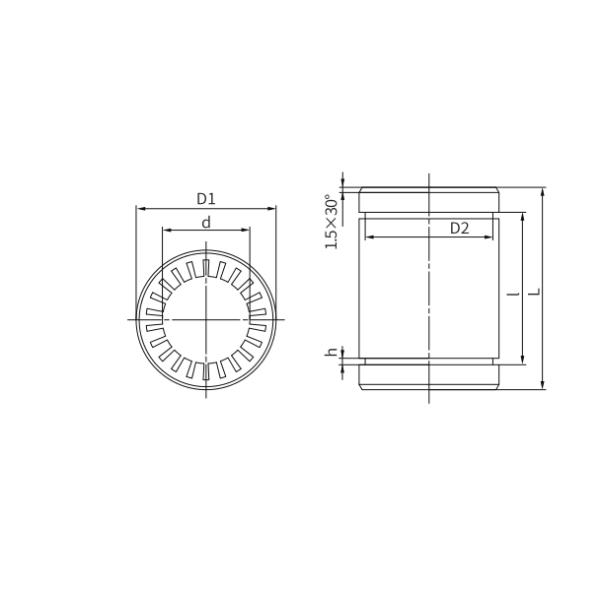

Standard Size Table

Plastic Linear Bearing Plastic Self Lubricating Bearing linear slide bearing

Part No.	d	Tolerance	D1	L	I	h	D2	Dynamic Load P=5MPa	Static Load P=35MPa	Weight	Fit Press
Part No.	[mm]	[mm]	h7	h10	H10	H10	h10	F max. [N]	F max. [N]	(g)	(N)
JR102M-01-08	8	+0.025/+0.061	16	25	16.20	1.10	15.20	250	1750	4	400
JR102M-01-10	10	+0.025/+0.061	19	29	21.60	1.30	17.50	363	2538	7	700
JR102M-01-12	12	+0.032/+0.075	22	32	22.60	1.30	20.50	480	3360	9	1300
JR102M-01-16	16	+0.032/+0.075	26	36	24.60	1.30	24.20	720	5040	13	1100
JR102M-01-20	20	+0.040/+0.092	32	45	31.20	1.60	29.60	1125	7875	24	1500
JR102M-01-25	25	+0.040/+0.092	40	58	43.70	1.85	36.50	1813	12688	47	3500
JR102M-01-30	30	+0.040/+0.092	47	68	51.70	1.85	43.50	2550	17850	72	4500
JR102M-01-40	40	+0.050/+0.112	62	80	60.30	2.15	57.80	4000	28000	127	4200
